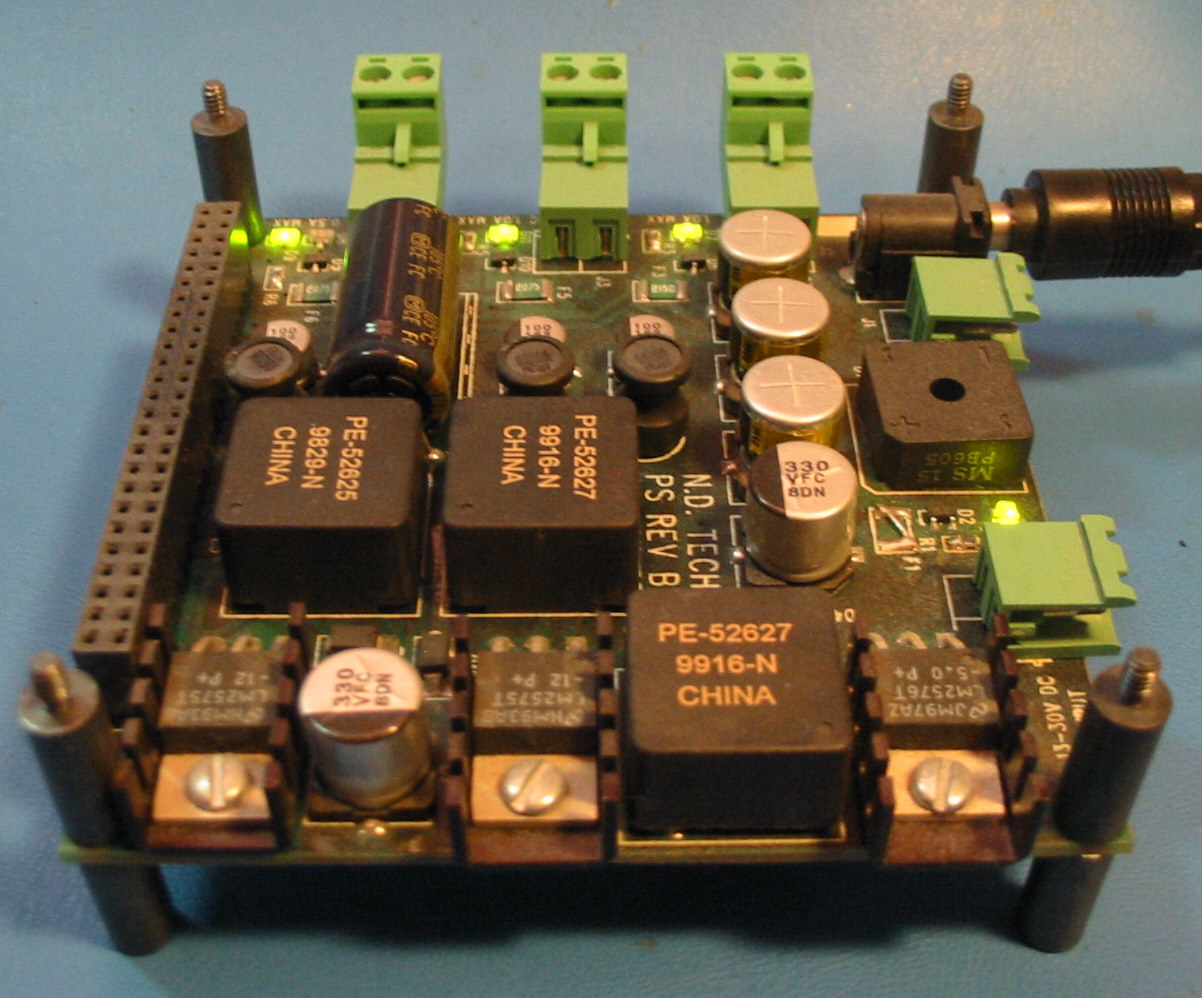

The 5150 Power Supply supplies +5, +12 and -12 VDC to the 5150 bus and external devices.

Specification:

INPUT:

+12 to 30 VDC input or 10 to 24 VAC  (35W max)

OUTPUT:

+5V @ 3A

+12V @ 1A

-12V @ 0.300A
